POKERWATT MC90-45 Engine-Driven Generator 45Amps For Concrete Vibrator

POKERWATT MC90-45 PMG GENERATOR 45A For High Frequency Concrete Vibrators

Maximum-Capacity Engine-Driven Permanent Magnet Generator for

Industrial Applications

The POKERWATT MC90-45 is a specialized maximum-capacity engine-driven permanent magnet generator (PMG) designed specifically for concrete vibrators, delivering reliable three-phase 42V/200Hz output at a powerful 45 Amps. This industrial-grade generator component offers 3.5kVA (50Hz) of power and is engineered to be coupled with external engines, providing the flexibility to integrate with your existing power sources for the most demanding concrete vibration applications.

Professional Engineering Excellence

Engineered to meet the EN 600034-1 standard, the MC90-45 PMG delivers exceptional performance with important technical features:

• High frequency permanent magnet generator technology

• Insulation class F for superior thermal protection

• IP44 protection rating against solid objects and water splashing

• Robust aluminum housing with steel protection carter

• Durable epoxy powder paint finish for long-lasting performance

Industrial-Capacity Engine-Driven Design

Designed for maximum power and flexibility in source configuration:

• Standard J609a cone 19 coupling interface for easy engine integration

• Requires external engine to be coupled (not included)

• 45 Amp output capacity for powering multiple vibrators simultaneously

• Creates a customizable power solution for specific job site requirements

• Ideal for situations where maximum-capacity engine-driven solutions are required

Superior Construction & Durability

The POKERWATT MC90-45 PMG excels in the most challenging construction environments:

• Shock-resistant design for durability in harsh conditions

• Robust aluminum body providing excellent heat dissipation

• Additional steel protection carter for mechanical defense

• ABS shock-resistant box equipped with 2x32A sockets

• Reliable performance even under extreme job site conditions

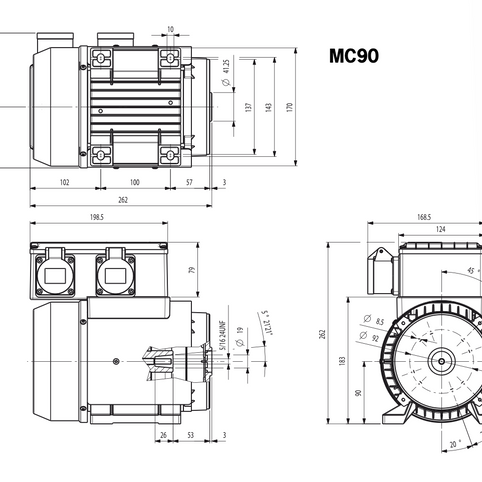

Technical Specifications

• Model: POKERWATT MC90-45 PMG

• Power Rating: 3.5kVA (50Hz)

• Current Rating: 45A (42V)

• Output: Three-phase 42V/200Hz, 32A

• Sockets: 2x32A

• Protection Rating: IP44

• Insulation: Class F

• Features: J609a cone 19 coupling

• Construction: Aluminum housing with steel protection carter

• Application: High frequency generator for concrete vibrators

• Usage: Engine-driven (requires separate engine coupling)

Made in Italy Quality

Part of the renowned SOGA Energy Team product lineup, the POKERWATT series represents Italian engineering excellence and manufacturing precision. Each unit delivers superior reliability and performance for your most demanding construction projects.

Ideal for Industrial-Scale Applications

The POKERWATT MC90-45 PMG is specifically designed for construction professionals requiring a maximum-capacity, flexible power generation solution that can be integrated with existing engines or specialized power systems. Its 45 Amp output provides the necessary power for multiple concrete vibrators or larger equipment while offering the versatility of custom power configurations for the most demanding industrial job site requirements.

For customization options, detailed technical specifications, or to arrange a consultation with our specialist, please contact our dedicated industrial solutions team.
