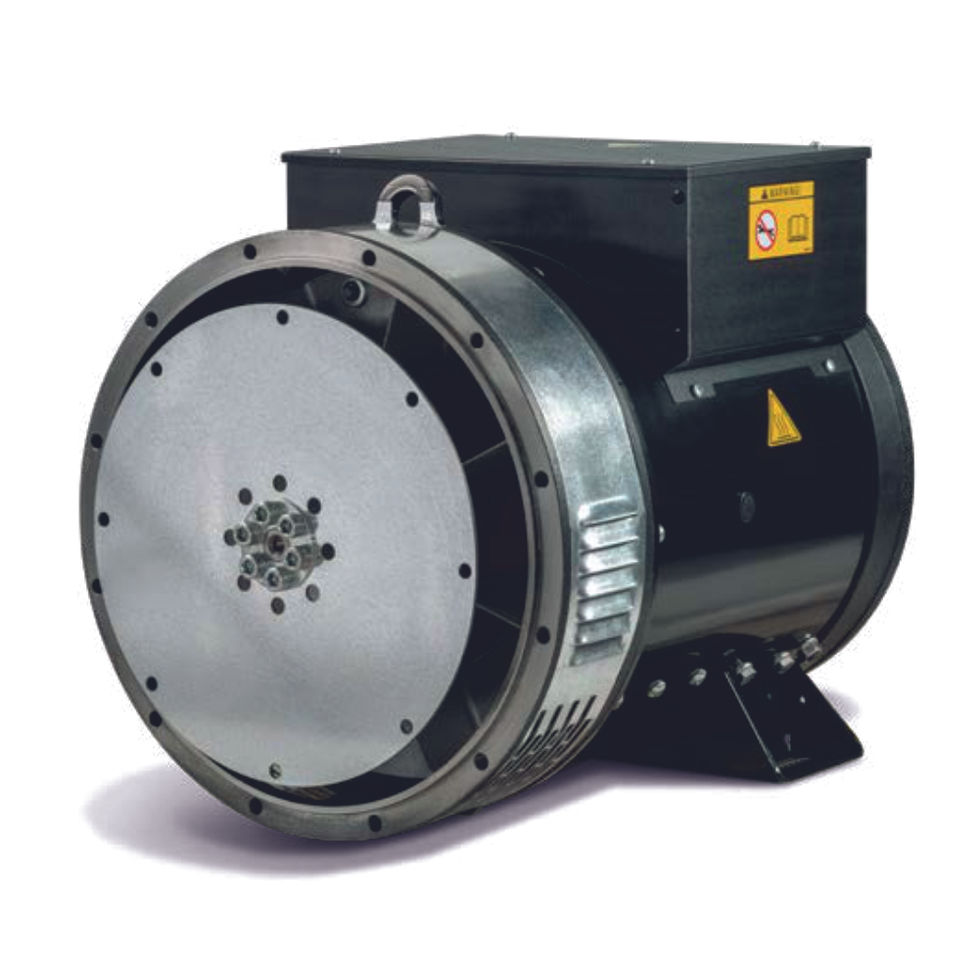

Sincro SK225 Industrial Alternators 4-poles/ 3-phase (1500-1800 rpm)

Sincro SK225 Industrial Alternators synchronous brushless/AVR

4-Poles/3-Phase | 1500-1800 RPM

Redefining Industrial Power Generation with Uncompromising Performance

The newly redesigned Sincro SK225 series represents the pinnacle of industrial alternator engineering, combining outstanding performance with practical innovations. This 4-pole industrial brushless/AVR alternator series delivers reliable power generation with enhanced design features that benefit both integrators and end-users.

Technical Specifications

• Standards Compliance: EN 60034-1, IEC 60034-1, ISO 8528-3

• Protection Degree: IP23 standard

• Bearings: Heavy-duty dimensioned for industrial applications

• Transient Performance: Less than 18% voltage drop for rated step load at 0.8 power factor

• Tropicalization: Standard protection included

Revolutionary Design Features

1. Superior Durability with Steel Housing

The exclusive steel housing design—shared with SK160, FB, HB, and IB models—features epoxy-powder-paint finishing that ensures exceptional scratch resistance and toughness. The innovative fixing screw system for main stator and exciter support bars enhances overall structural integrity.

2. Complete Interchangeability

Maintain full compatibility with current SK225 models for both SAE and IM B34 couplings. The identical frame size and interaxis distance between mounting feet ensure seamless integration into existing setups without modification.

3. Optimized Terminal Box Design

The terminal box sits 65mm lower than previous models, delivering significant logistical advantages. This space-saving innovation enables packing four alternators in a standard shipping crate instead of two, dramatically reducing transportation and storage costs.

4. PMG Kit for Enhanced Flexibility

The redesigned cast-iron rear shield comes pre-configured to accommodate a Permanent Magnet Generator (PMG). Available as an optional kit, this feature allows OEMs and distributors to perform installations independently, enhancing service capabilities and reducing lead times.

Applications

Ideal for demanding industrial applications including:

• Backup power systems

• Prime power generation

• Construction and infrastructure projects

• Industrial manufacturing

• Telecommunications infrastructure

• Agricultural operations

Why Choose Sincro SK225?

The Sincro SK225 series delivers the perfect balance of robust engineering, practical design, and reliable performance that modern industrial applications demand. With its enhanced durability, streamlined logistics, and adaptable configuration options, the SK225 represents a forward-thinking solution for today’s power generation challenges.

Contact your Sincro representative today to learn how the SK225 series can power your industrial applications with confidence.
