Generators for high frequency
concrete vibrators
SOGA Generators for High Frequency Concrete Vibrators
High-Quality Equipment for Construction Works
SOGA offers a wide range of generators for high frequency concrete vibrators, designed for professional use at construction sites.
Rotating converters:

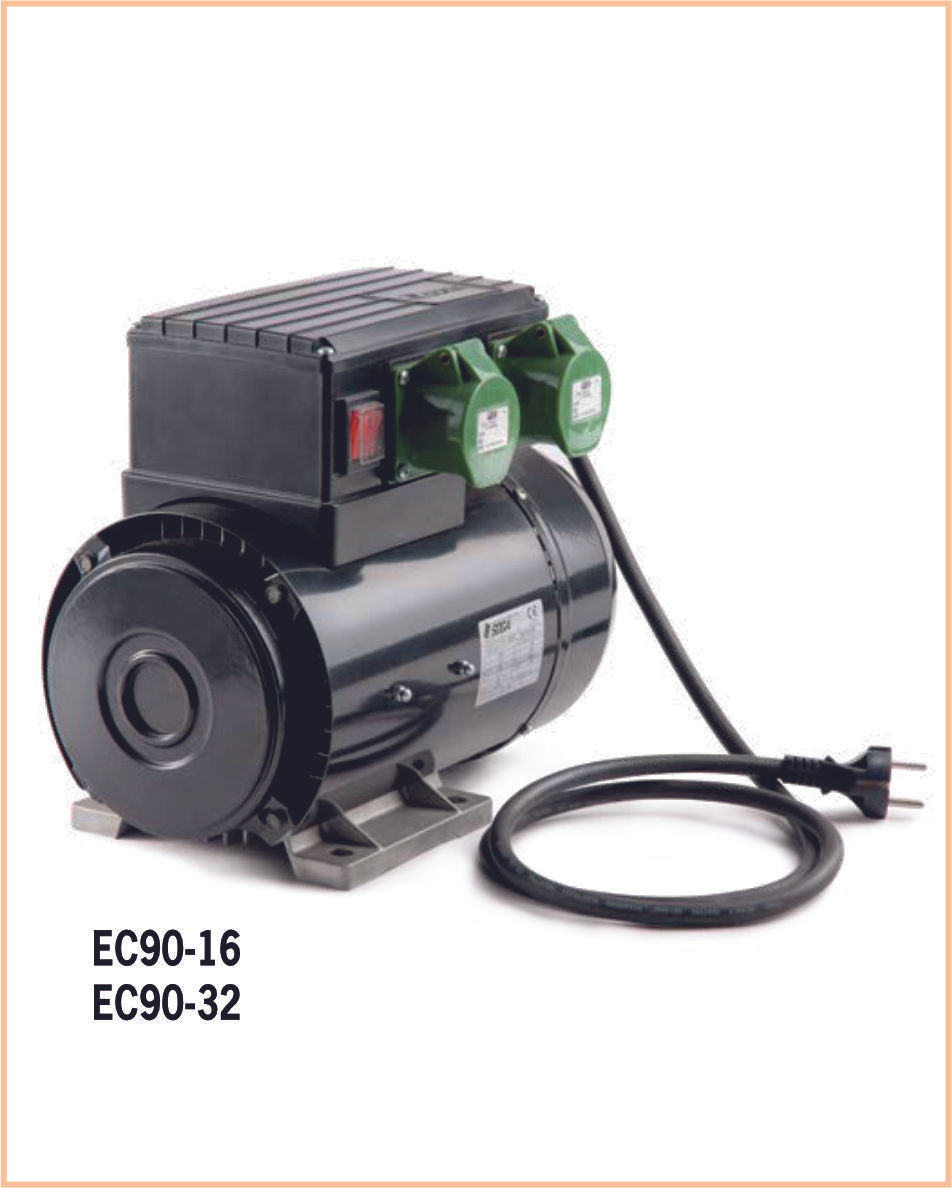

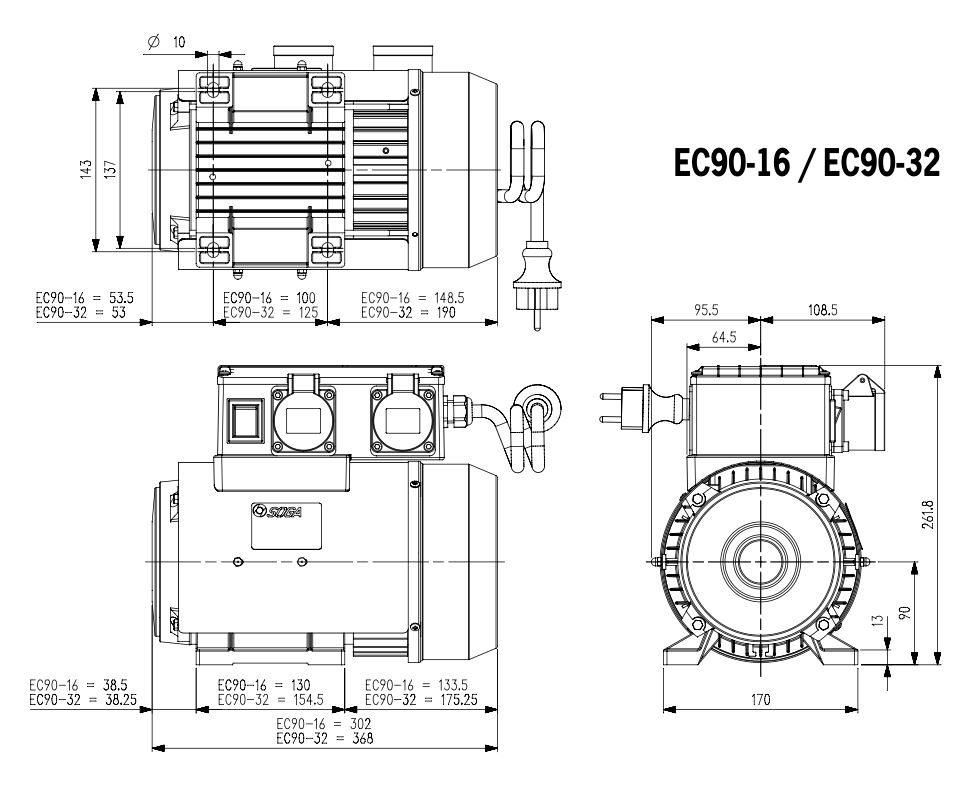

EC90-16
1,5kW
1Phase 230V/ 50Hz
16A
EC90-32
3Kw
1Phase 230V/ 50Hz
32A
EC90-45
4,5Kw
3Phase 400V/ 50Hz
45A
Plug & Play rotating converters:
PWH-12 handy
1,2kW
1Phase 230V/ 50Hz
12A
PWH-16 handy
1,5Kw
1Phase 230V/ 50Hz
16A
PW-16 case
1,5Kw
3Phase 320V/ 50Hz
16A
PW-32 case
3Kw
1Phase 230V/ 50Hz
32A

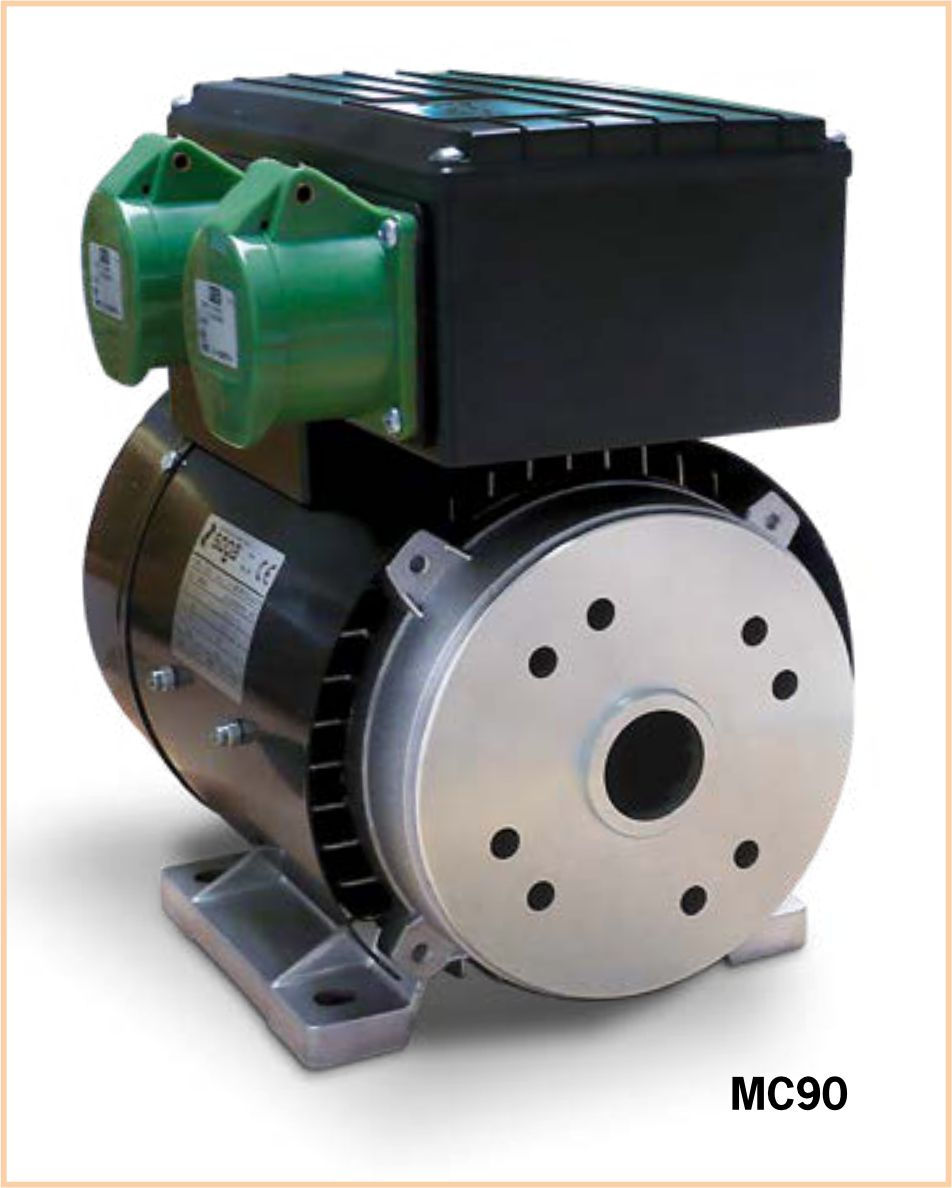

Engine-driven high frequency PMG generators:
MC90-16
1,1kVA/ 50Hz
1,1A
MC90-32
2,2kVA
32A
MC90-45
3,5kVA
45A
Rotating converters
Asynchronous motor + High frequency permanent magnet generator
General features:
■ Asynchronous motor + High frequency permanent magnet generator
■ EN 600034-1
■ Insulation class F
■ IP44
■ Input voltage (electric motor): single-phase 230V/50Hz or three-phase 400V/50Hz
■ Output voltage (generator): three-phase 42V/200Hz
■ Aluminium housing with steel protection carter, epoxy powders painted
■ ABS shock-resistant box on single-phase models equipped with: On/off switch + 2x32A sockets + 1,5-mt-cable + single-phase schuko plug
■ Metal box on three-phase model equipped with: 2x32A sockets + 1,5-mt-cable + three-phase CEE plug
kW (P1) - Motor power in kilowatts, V - Hz - Voltage and frequency, kVA (50Hz) - Generator output power in kilovolt-amperes at 50Hz, I (42V) - Current at 42V in amperes, V - Hz - Voltage and frequency range for generator, 32 A sockets - Number of 32 ampere sockets, mass (kg) - Weight in kilograms
Plug & Play rotating converters
POKERWATT is a range of Plug & Play electroconverters ready to use, single-phase AC input, V42/200Hz output, currently 12 Amps to 32 Amps, highly performing with neodimium magnets.
POKERWATT is provided in 2 versions:

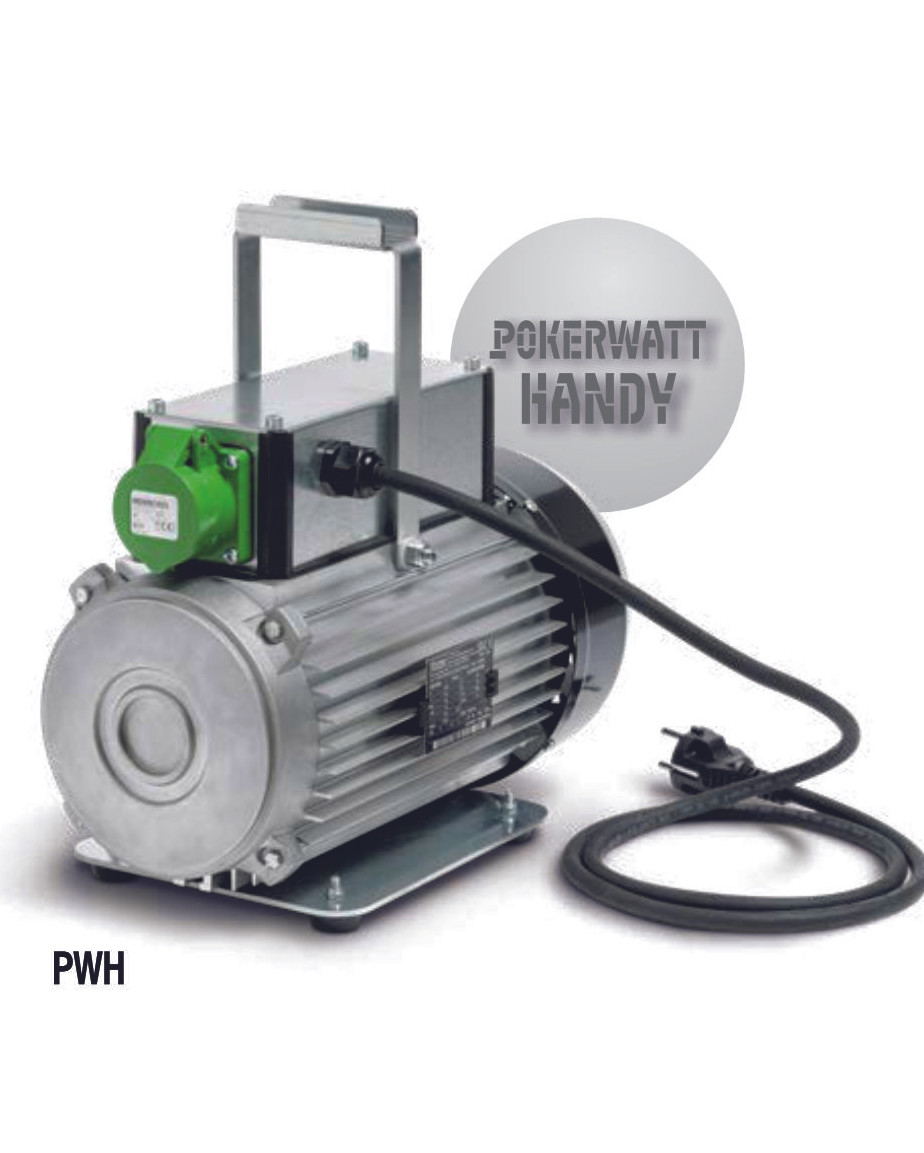

■ HANDY: light, sturdy and easy to carry with a practical foldable handle

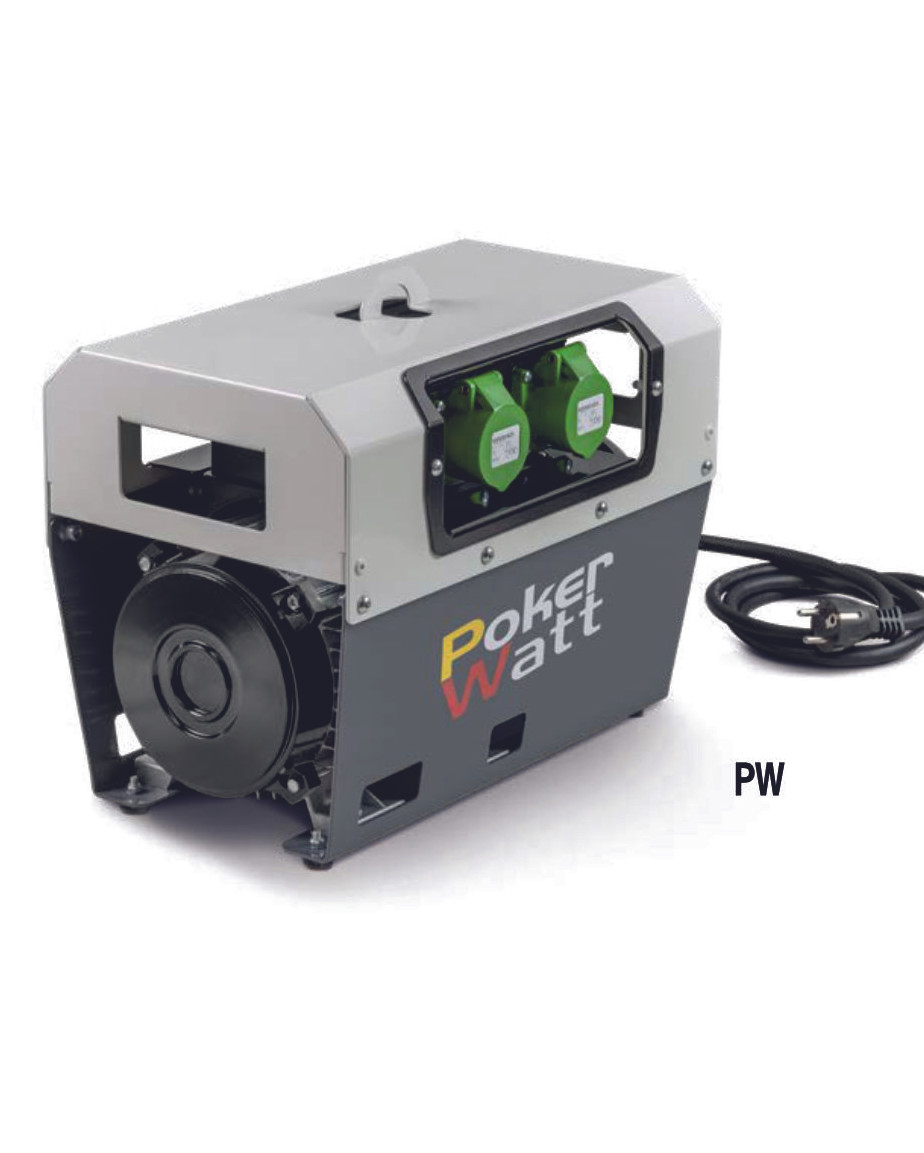

■ CASE: equipped with a 2-mm-thick steel case enhancing steadiness, durability, portability, mechanical strenght and protection against accidental hits and concrete falls
kW (P1) - Motor power in kilowatts, V - Hz - Voltage and frequency, kVA (50Hz) - Generator output power in kilovolt-amperes at 50Hz, I (42V) - Current at 42V in amperes, V - Hz - Voltage and frequency range for generator, 32 A sockets - Number of 32 ampere sockets, mass (kg) - Weight in kilograms

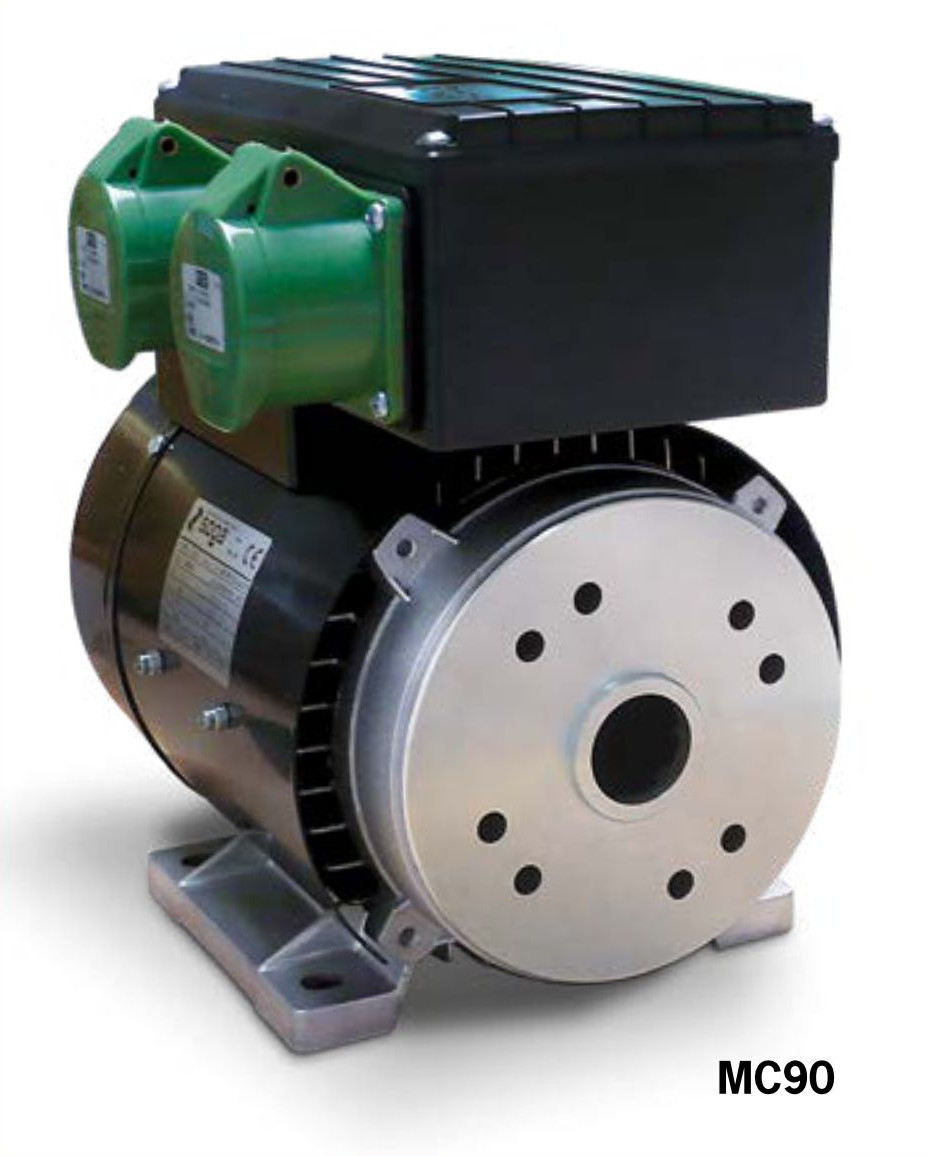

Engine-driven high frequency PMG generators
POKERWATT is a range of Plug & Play electroconverters ready to use, single-phase AC input, V42/200Hz output, currently 12 Amps to 32 Amps, highly performing with neodimium magnets.
General features:
■ High frequency permanent magnet generator
■ EN 600034-1
■ Insulation class F
■ IP44
■ Output voltage: three-phase 42V/200Hz
■ Aluminium housing with steel protection Carter, epoxy powders painted
■ ABS shock-resistant box on single-phase models equippedwith 2x32A sockets
■ Coupling for engines J609a cone 19
kVA (50Hz) - Generator output power in kilovolt-amperes at 50Hz, I (42V) - Current at 42V in amperes, V - Hz - Voltage and frequency range for generator, 32 A sockets - Number of 32 ampere sockets, mass (kg) - Weight in kilograms
