PMM 160MA/18-2 Permanent Magnets Motor Synchronous 3Phase/ 18Poles/ 2Modules
€0.00
SOGA PMM 160MA/18-2 Permanent Magnets Motor
High-Performance Synchronous Motor Technology
The SOGA PMM 160MA/18-2 represents cutting-edge engineering in permanent magnet motor technology. This three-phase synchronous motor delivers exceptional output and torque performance across variable speed applications, making it an ideal solution for demanding industrial environments.
Advanced Design Features
- Premium Neodymium Magnets: Equipped with high-grade NdFeb modular multipole rotors for maximum magnetic field strength and reliability
- Versatile Compatibility: Operates seamlessly with standard market inverters designed for asynchronous motors
- 18-Pole/2-Module Configuration: Optimized pole and module design for superior performance characteristics
- Compact Footprint: Delivers remarkable power density in a space-efficient design
Application Versatility
Our PMM 160MA/18-2 motor excels across three specialized design versions:
1. Low Speed Applications: Perfect for gearboxes, winches, motorized roller conveyors, fans, compressors, mixers, and automation systems requiring precise low-speed control.
2. Space-Constrained Environments: Ideal for applications with limited installation space that still demand high output and torque performance.
3. Constant Torque Requirements: Exceptional performance in automation systems including roller conveyors, conveyor belts, unwinders, feeders, presses, and specialized gearboxes.
Industry-Leading Efficiency
Experience reduced energy consumption and operating costs with our advanced synchronous motor technology. The PMM 160MA/18-2 delivers superior efficiency compared to conventional motors, particularly in variable-speed applications.
Contact our sales team today for detailed technical specifications, customization options, and expert guidance on implementing the SOGA PMM 160MA/18-2 in your specific application.
1. Low Speed Range (0-500 RPM)
Ideal for: Gearboxes, winches, motorized roller conveyors, fans, compressors, mixers, automation
| Speed (RPM) |
Output Power (kW) |
Torque (Nm) |
| 200 | 0,40 | 19,00 |
| 300 | 0,85 | 27,00 |
| 400 | 1,32 | 31,57 |
| 500 | 1,86 | 35,57 |
2. High Performance Range (750-3000 RPM)
Applications wherever, due to limited space available, a compact construction with high output and torque characteristics is required.
| Speed (RPM) |
Output Power (kW) |
Torque (Nm) |
|---|---|---|
| 750 | 3,23 | 41,20 |
| 1000 | 4,52 | 43,23 |
| 1500 | 7,16 | 45,60 |
| 2000 | 9,87 | 47,13 |
| 2500 | 12,63 | 48,26 |
| 3000 | 15,64 | 49,81 |

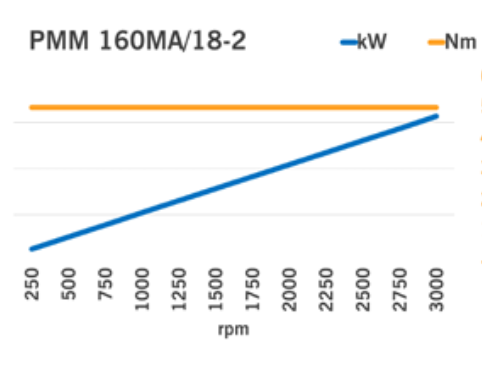

3. Constant Torque Range (250-3000 RPM)
Ideal for: Automation systems including roller conveyors, conveyor belts, unwinders machines, feeders, presses, gearboxes
| Speed (RPM) |
Output Power (kW) |
Torque (Nm) |
|---|---|---|
| 250 | 1,30 | 49,8 |
| 500 | 2,61 | 49,8 |
| 750 | 3,91 | 49,8 |
| 1000 | 5,21 | 49,8 |
| 1250 | 6,52 | 49,8 |
| 1500 | 7,82 | 49,8 |
| 1750 | 9,12 | 49,8 |
| 2000 | 49,8 | 49,8 |
| 2250 | 11,73 | 49,8 |
| 2500 | 13,03 | 49,8 |
| 2750 | 14,34 | 49,8 |
| 3000 | 15,64 | 49,8 |
Dimensions
494/668*x318x382,5 mm
*Constant Torque Range Version
Catalog
Download catalog Soga Modular permanent magnetssynchronous motors
