PMM 160MC/18-4 Modular Permanent Magnets Motor 3Phase/ 18Poles/ 4Modules
€0.00
SOGA PMM 160MC/18-4 Modular Permanent Magnets synchronous Motor 3 Phase/ 18 Poles/ 4 Modules
Ultimate Modular Synchronous Performance
The SOGA PMM 160MC/18-4 represents the flagship model in advanced modular motor technology. This sophisticated three-phase synchronous permanent magnet motor delivers exceptional power density, remarkable torque characteristics, and unmatched performance versatility across a wide operational spectrum.
Premium Modular Engineering
- Maximum 4-Module Configuration: The advanced 18-pole/4-module architecture provides superior power output, enhanced torque stability, and exceptional performance under varying load conditions
- Premium Neodymium Technology: Features precision-engineered NdFeb modular multipole rotors for optimal magnetic field density and maximum operational efficiency
- Flexible Integration: Compatible with standard market inverters designed for asynchronous motors, ensuring straightforward installation and control
- Modular Design Advantages: Benefit from enhanced cooling efficiency, improved power distribution, and optimized performance across all operational parameters
Comprehensive Application Solutions
The PMM 160MC/18-4 excels across three specialized performance profiles:
Low Speed Applications: Superior solution for gearboxes, winches, motorized roller conveyors, fans, compressors, mixers, and sophisticated automation systems requiring precise low-speed control with maximum torque.
Space-Constrained Environments: Ideal for applications where installation space is severely limited but performance demands remain uncompromising, delivering exceptional power density in a compact footprint.
Constant Torque Requirements: Unmatched performance in demanding automation systems including roller conveyors, conveyor belts, unwinders, feeders, presses, and specialized gearboxes requiring absolute torque consistency.
Unparalleled Efficiency & Reliability
Experience dramatic energy savings and significantly reduced lifecycle costs with our most advanced modular synchronous technology. The PMM 160MC/18-4 sets new standards for industrial motor efficiency, particularly in applications requiring frequent speed variations and start-stop cycles.
Contact our sales team today for detailed technical specifications, customization possibilities, and expert consultation on implementing the SOGA PMM 160MC/18-4 in your most demanding industrial applications.

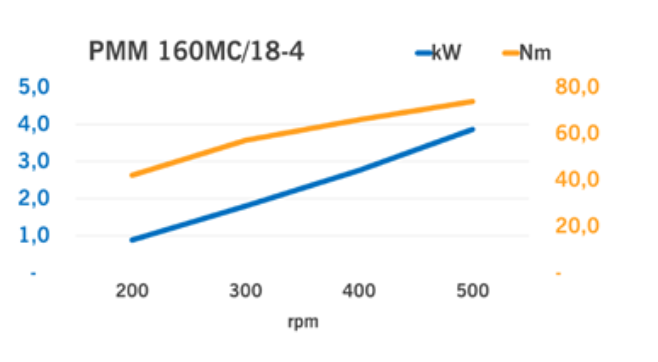

1. Low Speed Range (0-500 RPM)
Ideal for: Gearboxes, winches, motorized roller conveyors, fans, compressors, mixers, automation
| Speed (RPM) |
Output Power (kW) |
Torque (Nm) |
| 200 | 0,88 | 42,00 |
| 300 | 1,79 | 57,13 |
| 400 | 2,76 | 65,92 |
| 500 | 3,86 | 73,83 |
2. High Performance Range (750-3000 RPM)
Applications wherever, due to limited space available, a compact construction with high output and torque characteristics is required.
| Speed (RPM) |
Output Power (kW) |
Torque (Nm) |
|---|---|---|
| 750 | 6,72 | 85,55 |
| 1000 | 9,20 | 87,90 |
| 1500 | 14,53 | 92,50 |
| 2000 | 20,24 | 96,69 |
| 2500 | 26,18 | 100,00 |
| 3000 | 32,00 | 102,55 |
3. Constant Torque Range (250-3000 RPM)
Ideal for: Automation systems including roller conveyors, conveyor belts, unwinders machines, feeders, presses, gearboxes
| Speed (RPM) |
Output Power (kW) |
Torque (Nm) |
|---|---|---|
| 250 | 2,68 | 102,5 |
| 500 | 5,37 | 102,5 |
| 750 | 8,05 | 102,5 |
| 1000 | 10,73 | 102,5 |
| 1250 | 13,42 | 102,5 |
| 1500 | 16,10 | 102,5 |
| 1750 | 18,78 | 102,5 |
| 2000 | 21,47 | 102,5 |
| 2250 | 24,15 | 102,5 |
| 2500 | 26,83 | 102,5 |
| 2750 | 29,52 | 102,5 |
| 3000 | 32,20 | 102,5 |
Dimensions
494/668*x318x382,5 mm
*Constant Torque Range Version
Catalog
Download catalog Soga Modular permanent magnetssynchronous motors
